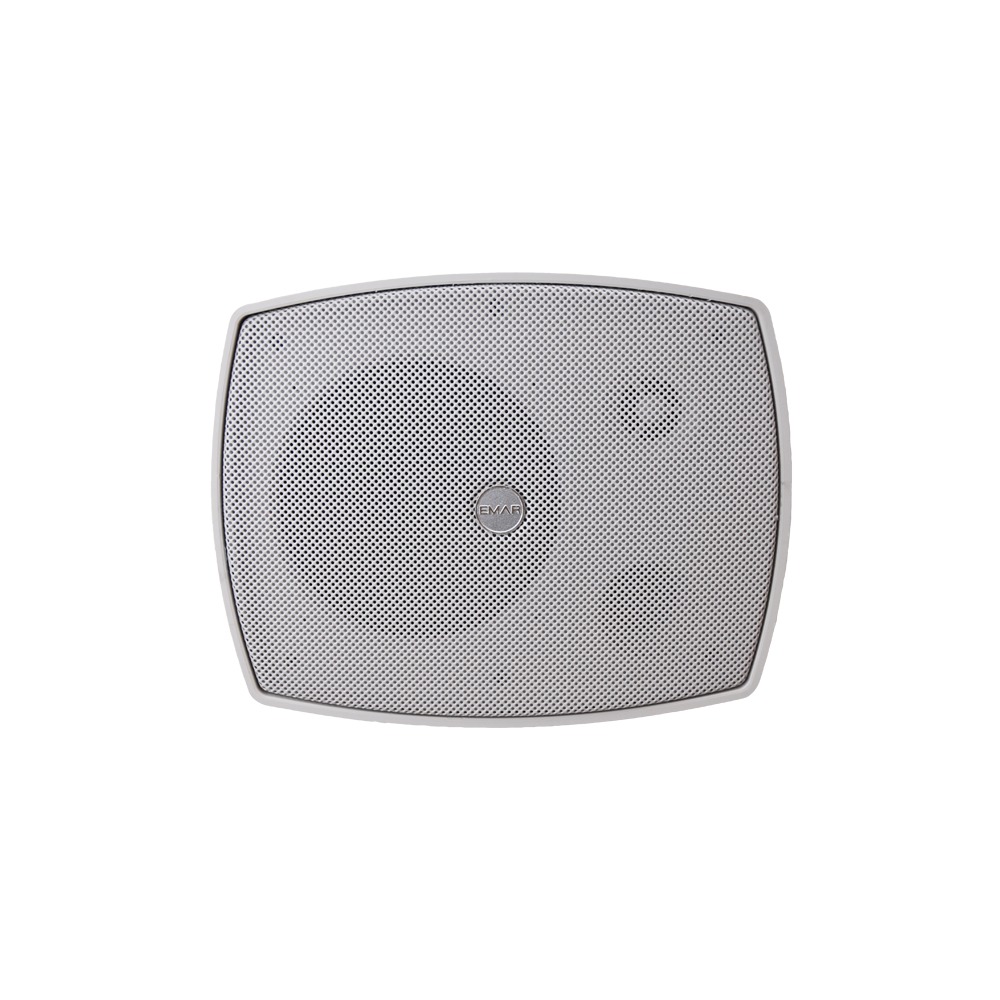

Emar EN-06

Frequency Range (-10 dB) : 150 Hz – 20 kHz Power Capacity : 10 Watts (at 10W tap) Rated Pink Noise Power: 10 Watts (at 10W tap) Rated Pink Noise Voltage:…

Compare
Karşılaştır
Karşılaştır
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Download
Description
  • Frequency Range (-10 dB) : 150 Hz – 20 kHz
  • Power Capacity : 10 Watts (at 10W tap)
  • Rated Pink Noise Power: 10 Watts (at 10W tap)
  • Rated Pink Noise Voltage: 100V distributed speaker line voltage
  • Nominal Sensitivity : 92 dB
  • Component : 6″ Full range dual-cone loudspeaker
  • Rated Maximum SPL: 102 dB @ 1m (3.3 ft) average SPL (6W tap @ 100V)
  • Nominal Impedance: 10W @ 100V
  • Transformer Taps: 10W at 100V. Selected by sliding the included fast-on
    connector onto the proper tab on the transformer

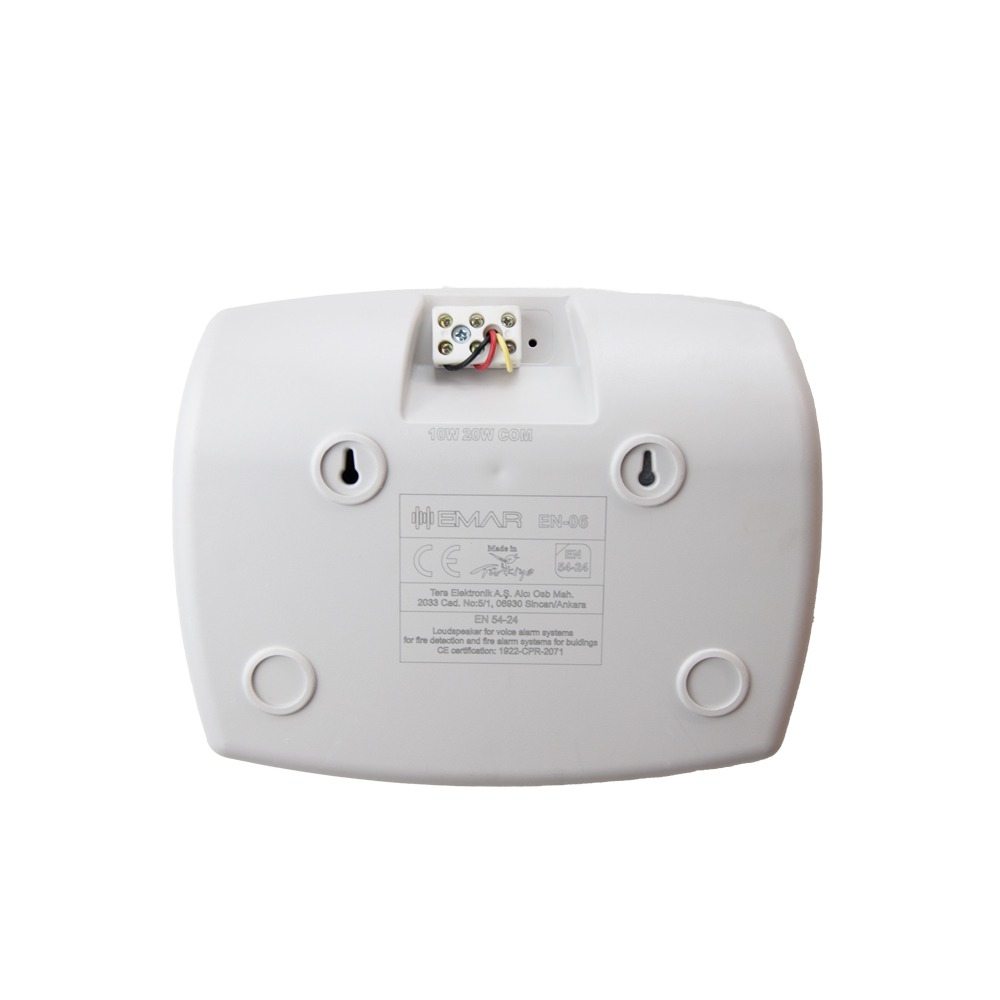

  • Connections: Input +, Input -, Earth Ground (connected to metal speaker baffle).
    Ceramic block with brass inserts (3.2 mm / 0.12 in. opening)
    accommodates 2.5 sq mm / 12 AWC wire.
  • Ambient Temp Range: -10°C to +55°C
  • Size: 195 mm x260mm x80mm
  • Net Weight: 2.6 Kg (5.78 lb) per speaker
Download

EMAR EN-06 DATASHEET
