Emar EN-02
Frequency Range (-10 dB) : 90 Hz – 16 kHz Power Capacity : 6 Watts (at 6W tap) Rated Pink Noise Power: 6 Watts (at 6W tap) Rated Pink Noise…
Description
- Frequency Range (-10 dB) : 90 Hz – 16 kHz
- Power Capacity : 6 Watts (at 6W tap)
- Rated Pink Noise Power: 6 Watts (at 6W tap)
- Rated Pink Noise Voltage: 100V distributed speaker line voltage
- Nominal Sensitivity : 92 dB
- Component : 4″ Full range dual-cone loudspeaker
- Rated Maximum SPL: 91 dB @ 1m (3.3 ft) average SPL (6W tap @ 100V)
- Nominal Impedance: 6W @ 100V
- Transformer Taps: 6W at 100V. Selected by sliding the included fast-on

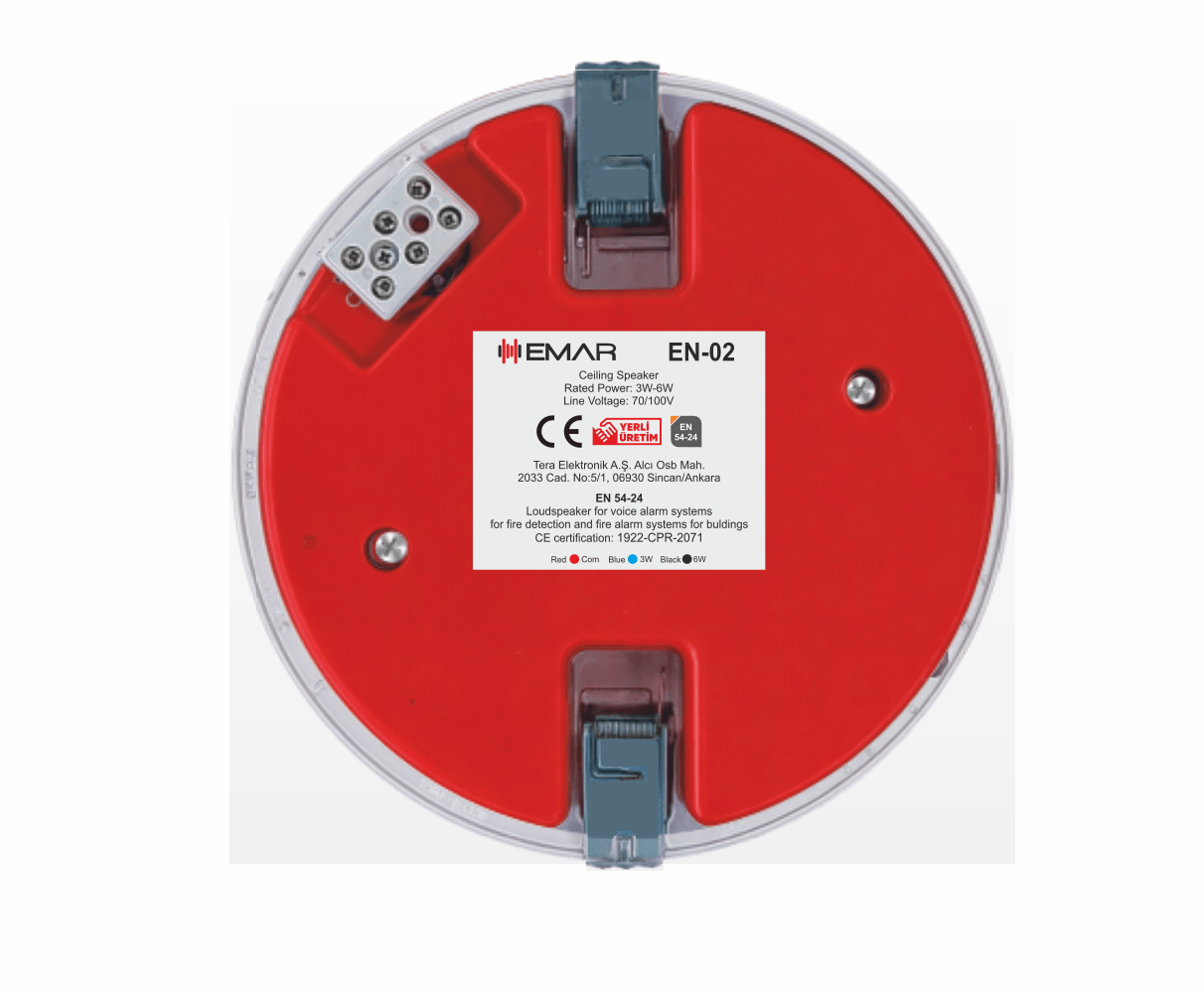

connector onto the proper tab on the transformer - Connections: Input +, Input -, Earth Ground (connected to metal speaker baffle).
Ceramic block with brass inserts (3.2 mm / 0.12 in. opening)
accommodates 2.5 sq mm / 12 AWC wire. - Ambient Temp Range: -10°C to +55°C
- Ceiling Cutout Size: 140 mm diameter hole ±2 mm (0.1 in)
- Net Weight: 1 Kg per speaker
